Flexible jumper wires are made of a flexible wire with a rigid pin attached to both ends. While their exact appearance might vary from breadboard to breadboard, the general purpose is always the same.
They are usually small cylinders marked with a band or stripe on one end this is the direction electricity can flow toward. For some electronic components, direction does not matter. For example, jumper wires and resistors work the same in both directions.
What other colors you use is largely a matter of choice and will depend on the specific circuit you are building. Many electronics projects use something called a breadboard. To learn more about wire gauge and how to strip wire, see the Science Buddies Wire Stripping Tutorial. This makes breadboards great for beginners who are new to electronics. Make sure to connect positive to positive and negative to negative see the section on buses if you need a reminder about which color is which.
This is why you should always carefully check and double-check your wiring before you test a circuit. Reproduction of material from this website without written permission is strictly prohibited. Take a look at a bunch of project involving breadboards.
We are all makers
The kits are available in larger and smaller sizes. Let us take a closer look at the circuits.
Similar to getting row numbers wrong, getting the power and ground buses mixed up is another common mistake. Every column is electrically connected from inside. You may print and distribute up to copies of this document annually, at no charge, for personal and classroom educational use. Jumper wires are wires that are used to make connections on a breadboard. Note that exact configurations might vary from breadboard to breadboard.
Red is used for positive and black is used for negative. Carefully compare the two pictures to the breadboard diagram. Typically, to make power and ground available on both sides of the breadboard, you would connect the buses with jumper wires, like this.
This is the best long-term option if you plan on doing lots of electronics projects, because you can cut wires to the exact length you need, and pick which colors you want. There are several different options available when purchasing jumper wires.
Notice how your finger still goes through each component in the same order, even though they have been physically rearranged. This can make it difficult to color-code your circuit for example, you might want a long black wire, but your kit might only have short black wires. Some circuit components, like battery packs and certain sensors, come with colored wires already attached to them. Sometimes, shorter metal legs are referred to as pins instead. Whether or not you color-code your circuit depends largely on what type of jumper wire you purchase see the question about jumper wires.
The labels just make it easier to organize your circuit, similar to color-coding your wires. You can build a electronic circuit on a breadboard without any soldering! There may be small differences in how the buses are labeled from breadboard to breadboard. It is also much more cost-effective per length of wire. Mid Century Modern Nixie Clock.
Breadboards do not work with surface mount components. Now, let us take a closer look at the two circuits. Buying a kit of six different colors is a good place to start. Do you see the problem yet?
Color-coding is a matter of convenience in that it can help you stay more organized, but using different color wires will not change how your circuit works. These kits are very convenient because they come with wires of many different pre-cut lengths. While most Science Buddies projects will link to exactly what parts you need to buy for a project, be careful if you are buying parts for your own project. Soldering is a great technique to learn if you are interested in electronics, but the connections are much more permanent and it requires purchasing some tools to get started. Is this only possible with cheap breadboards?
There are various types of breadboard. However, unlike breadboard diagrams, circuit diagrams only show electrical connections between components.
The color of the plastic does not affect how electricity flows through the wire. Click on the image to reveal the problem. In the photo on the right, it goes to the negative - bus. You should immediately disconnect the battery pack. To understand this, it helps to understand how a breadboard's holes are electrically connected.
If your circuit is not working and it involves any of these components, check to make sure they are inserted the right way. See the advanced section on integrated circuits to learn more. However, many electronic components are very tiny, and you may find them difficult to handle. Finally, you can also buy spools of solid-core hookup wire and a pair of wire strippers and cut your own jumper wires.
What is a breadboard, and how do you use it? Early amateur radio hobbists used cutting board for bread to prototype there radios thus the name breadboard came. On other breadboards this is reversed. This can happen from putting components into the wrong rows or buses, a travs del espejo pdf or from letting exposed metal parts bump into each other.
Okay enough talking, now we gonna learn how to practically use it. Putting these components into your circuit backwards or facing the wrong way will prevent your circuit from functioning properly. In this instructable I will guide you how to use a modern breadboard to make simple circuits. Use of this site constitutes acceptance of our Terms and Conditions of Fair Use. Notice how this circuit looks much less messy than the previous one, since the wires are shorter.
Look closely at these two images. From other tutorials I have seen on it and examining the strips of metal in the breadboard in the picture before, I believe that it was just arbitrarily placed.
Step 1 Types of Breadboard
Electrically, nothing has changed in the circuit. We will built some circuits and learn how a bread board practically works. Bus strips are usually used to provide power supply to the circuit. Stranded wire is much more flexible, so it is very hard to push into a breadboard's holes. It consists of two columns, one for power voltage and other for ground.

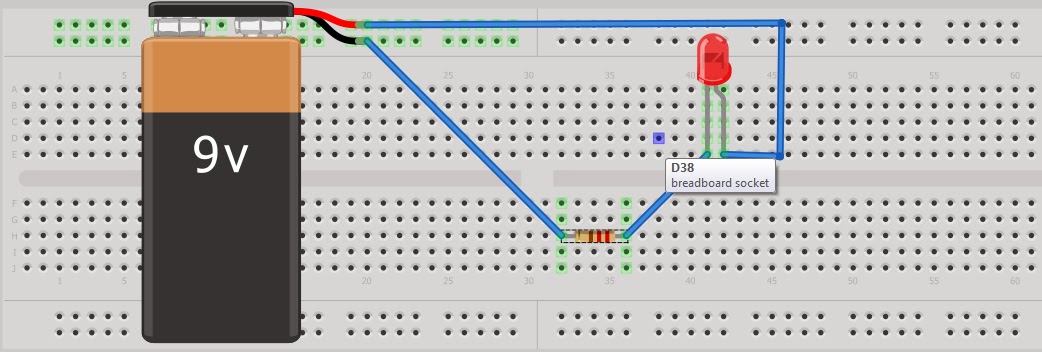

Let us take a look at the breadboard diagram for the circuit to see if we can spot the problem. Note that there is no physical difference between the positive and negative buses, and using them is not a requirement. Diodes are like one-way valves that only let electricity flow in one direction. Finally, remember on some breadboards the positive bus is on the left and the negative bus is on the right. Can you spot the difference between these two circuits?
